參數:

結構特點

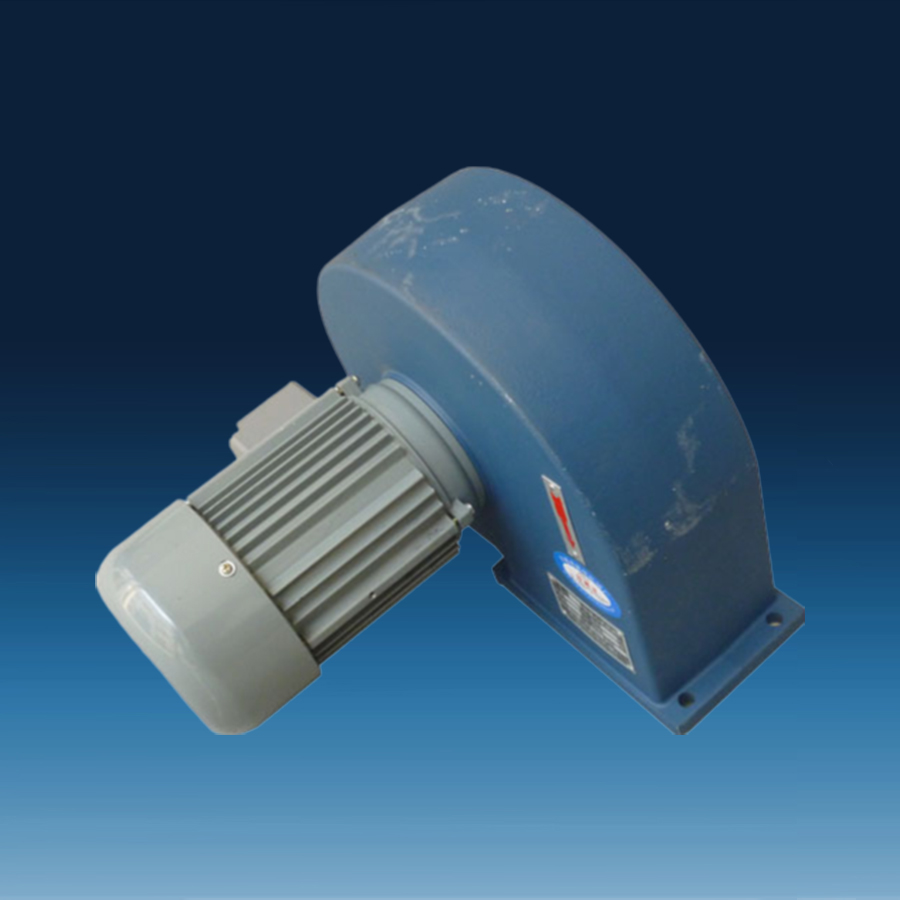

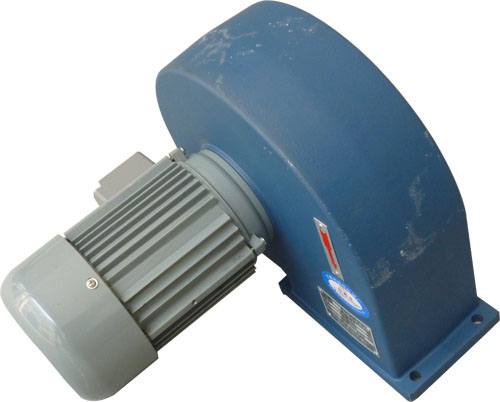

L型離心通風機，主要由空氣過濾器、葉輪、機殼和電動機組成。整機造型美觀，結構緊湊，攜手前進維修方便。

1．葉輪葉片均為前向多翼式，葉輪材料經鍍鋅處理或采用優質鍍鋅鋼板；葉輪經嚴格靜、動平衡校正和強度試驗。
2．L-03型…L-064型葉輪采用沖壓滾制而成績，機殼均為鋁合金整體澆鑄。
3．L-08…L-11型葉輪采用鉚接結構；機殼采用優質鋼板焊接而成績。
4．過濾器采用無紡布過濾，更換方便，保證輸送清潔空氣。

Products of series

Model L centrifugal ventilator is mainly composed by airfilter,vanewheel, chassis and electric motor. which is artistic inmold. compact instructure and convenient in dismantling,assembling and maintanance.

1 Both the vane wheel and blade are forward multiwing typesThematerials for vane wheel are either galvanized or adopted thebestgalvanized plate The vane wheel has been tested in strength
2 The vane wheels of Model L-03 t0 1...1 1 adopt the impact forgingand rolling process The chassi s is globle casted by aluminium alloy
3 The vane wheels of Model L-08 t0 1- 11 adopt the rivet jiont structure The chassis is welded by best steel plate
4 The filters adopt the nonwoven cloth filtrating.which is easy tochange. and guarantee the hygiene for ai r transmitting

主要性能參數 model centeifugal ventiltor.its major performance

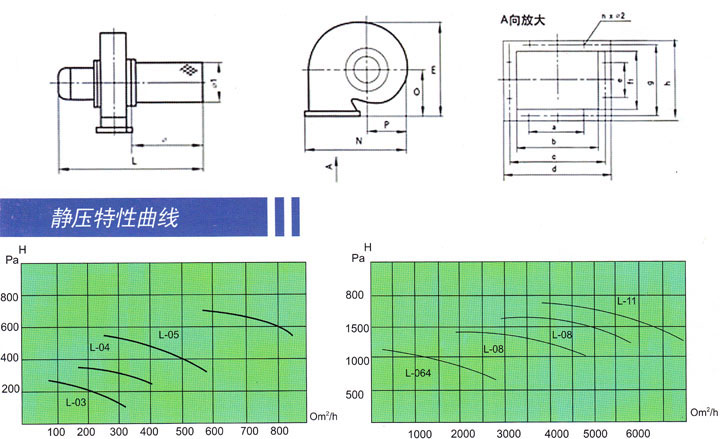

外型和尺寸
