參數:

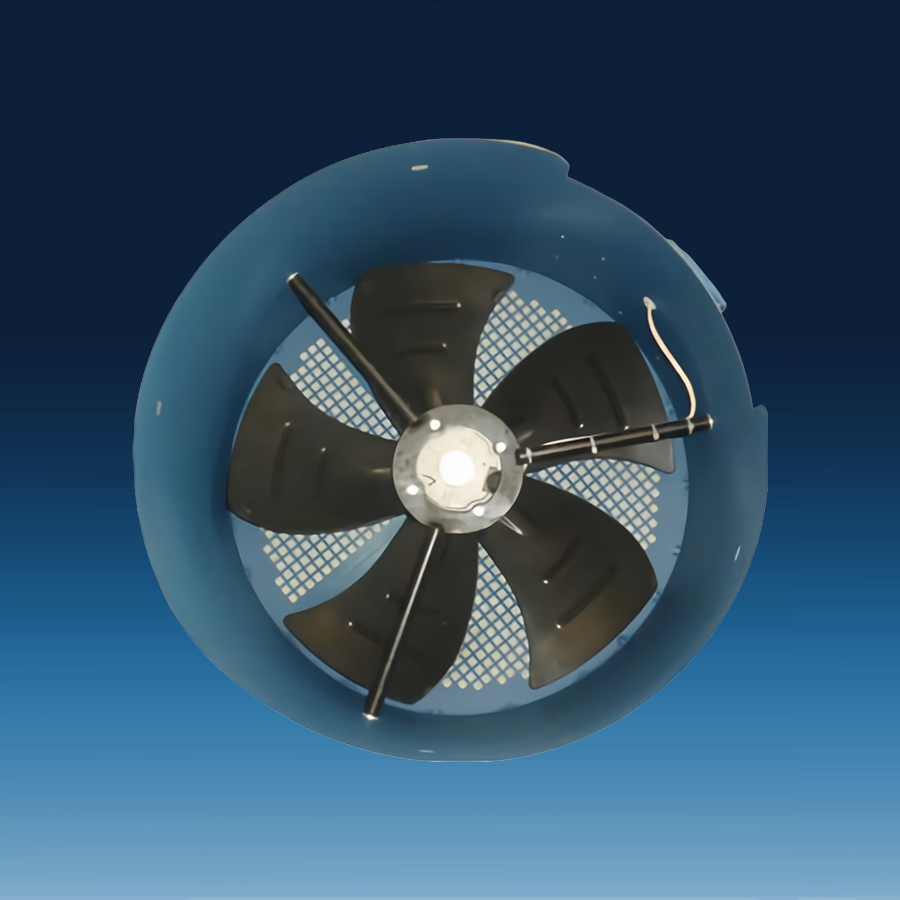

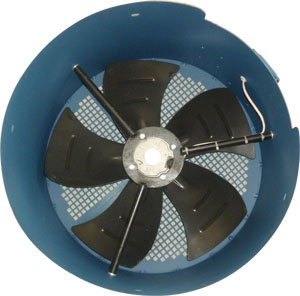

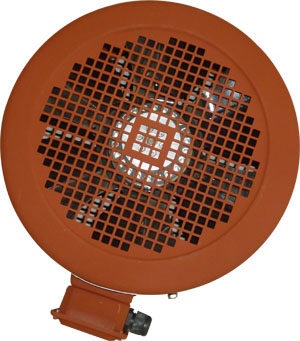

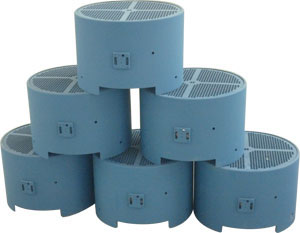

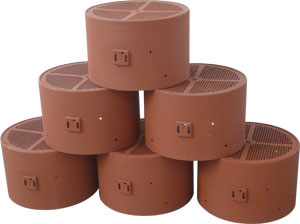

G系列軸流通風機是我廠專門為生產變頻調速電機廠家開發的經濟風機產品，該系列通風機 由機殼、電動機及風葉三部分組成，外型成圓筒型，風葉與電機連成一體，因而具有安裝簡單、 噪音低、振動小、運行可靠等優點。

G series axial fans are our economic fan products specially developed for manufacturers of frequency conversionspeed regulating motors.The product consisting of shell,motor and fan blades has a structure of integrated fanblades and motor in a cylindrical shell,thus forming the features of simple installation,low noise,small vibration,reliable operation,etc.

溫度：周圍環境空氣度隨季節變化，但不超過40℃
溫度：周圍環境空氣相對濕度不大于90%（溫度為25℃時）

Ambient temperature:Changed with season,not greater than 40℃)
Ambient humidity:Relative humidity not greater than 90%(At 25℃)

外形安裝及尺寸 Over andmounting dimensions

G-71A-G-132A

注：①3只長圓孔（n=3） 如E向均布
②G-80A-G-160A;G-180-G-250A,X=12
Note:1.3 long round holes(n=3)uniformly dist ributed in the E direction
2.G-80A-G-160A,X=5;G-180A-G-250A,X=12

G-160A-G-500A

注：4只長圓孔（n=4） 如F向均布
Note:4 long round holes(n=4)uniformly dist ributed in the F direction

訂貨須知

樣本所列規格（A）型為標準型，也可根據用戶的特殊要求制作如下型式：

1、改變L1、L2、L3結構
2、制成立式、帶防雨罩的結構（標準型為臥式）
3、制成左出線（從變頻調速電動機處或風機出口處看風機出現盒在左側，標準型為右出線），頂出線結構
4、制成機殼可裝制動器、編碼器等結構

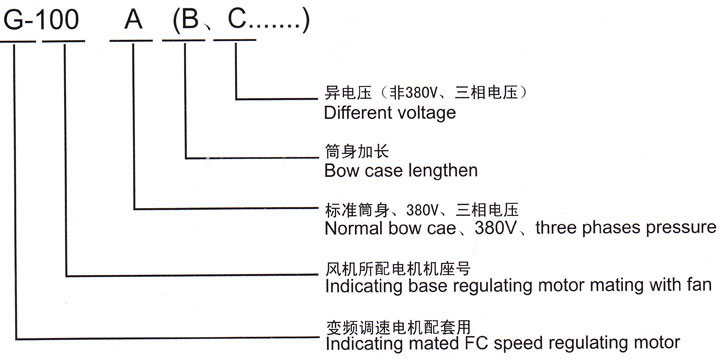

5、風機用電動機可以有異電壓，異頻率的電制、防護等級提高等特殊要求（標準型電制為三相380V50HZ、防護等級IP54、絕緣等級F級）G系列軸流風機特殊規格型式用B、C、D...表示，用戶在訂制特殊規格時應說明要求，并注明風機型號G-100B、G-100C...,以便公司對產品追溯及服務

Noite for ordering

Specification(TypeA)listed in catalogue is for standard version.The following versions can be tailored according tocustomer's special requirements;

1、Structure with specifications of L1、L2、L3,etc.
2、Vertical strcture with rain shield(Standard version is horizontal)
3、Left output connection(Output left side of fan terminal box looking form FC speed regulating motor or fan outlet;at the right side for standard version),top output connection;
4、Structure with brake
5、Fan motor suing power of different coltage and frequency higher protection class and insulation class(For standard Version,there' phase,380V50Hz,protection class IP54and insulation class F)G series axial fans with specifications are indicate as B.C.D,...when ordering products with special spectifications.customers should indicate fan type as G-100B or G-100C...so that our company will implement product traceaebility.
